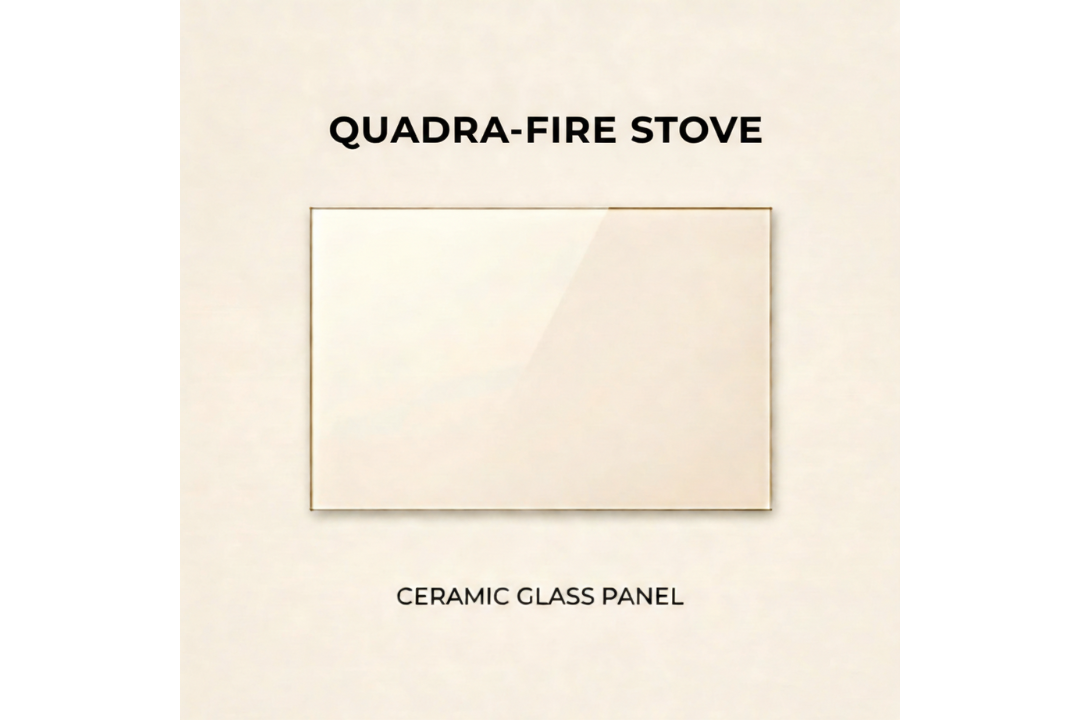

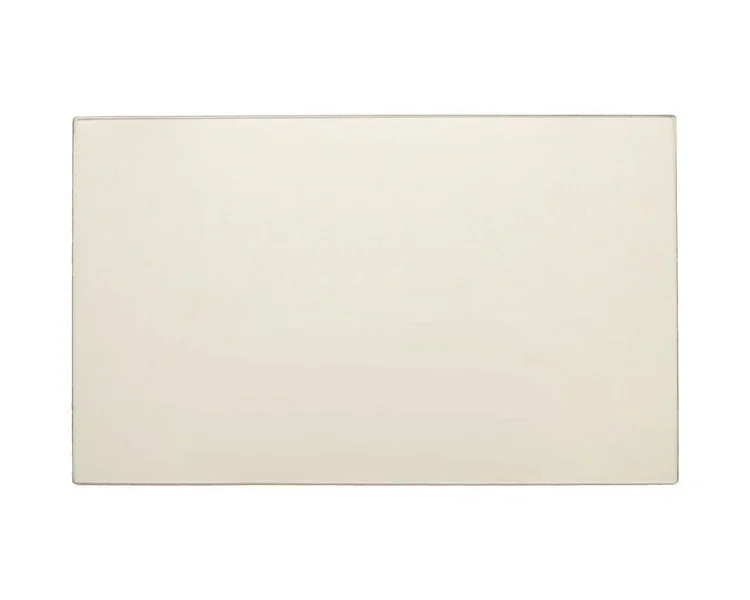

Quadra-Fire 4100-I ACT Ceramic Replacement Glass
If the glass on your Quadra-Fire 4100-I ACT is cracked, damaged, or too cloudy to enjoy the fire, this replacement ceramic panel can bring that clear flame view back.

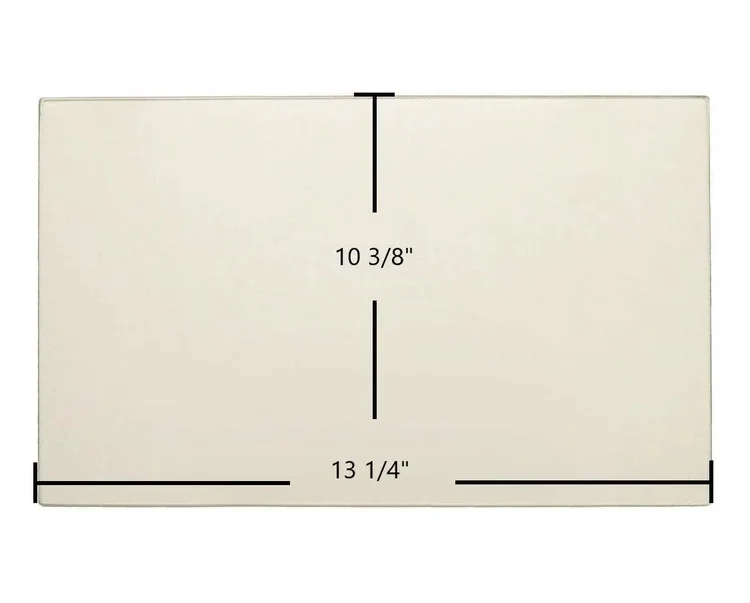

The panel measures 13 1/4" x 10 3/8" and is 3/16" (5mm) thick. It's made from high-temperature ceramic glass rated for temperatures up to 1400°F (760°C), with the subtle amber tint commonly found in ceramic stove glass.
The supplied information lists part 435-5470 for Quadra-Fire 4100-I ACT and 41-I ACC wood-burning models.
Quadra-Fire has plenty of model names and glass part numbers to keep us on our toes, so I'd confirm all three before ordering: stove model, part number, and measurements.
Product Details / Specifications:
Part Number: 435-5470
Dimensions: 13 1/4" W x 10 3/8" H
Thickness: 3/16" (5mm)
Glass Type: High-temperature ceramic glass
Temperature Rating: Up to 1400°F (760°C)
Tint: Clear with subtle amber tint
Listed Fit: Quadra-Fire 4100-I ACT and 41-I ACC
Made in USA
FAQs:
Q: What size is the Quadra-Fire 4100-I ACT replacement glass?
A: The supplied dimensions are 13 1/4" wide x 10 3/8" high with a thickness of 3/16" (5mm).
Q: What part number is listed for this replacement glass?
A: The supplied part number is 435-5470.
Q: Does this glass also fit the Quadra-Fire 41-I ACC?
A: The supplied compatibility information lists both the 4100-I ACT and 41-I ACC. Confirm your exact model, part number, and measurements before ordering.
Q: Is this tempered glass?
A: No. The supplied information identifies it as high-temperature ceramic glass for wood-burning applications.
Fit / Compatibility / Safety Notes:
Confirm your exact Quadra-Fire model before ordering.
Verify part number 435-5470 against your stove documentation when possible.
Measure carefully and confirm your required panel is 13 1/4" x 10 3/8" x 3/16".
Do not order by model name alone if your appliance has multiple glass panels or replacement options.
Use high-temperature ceramic stove glass where specified; do not substitute standard household or tempered glass.
Never force, grind, trim, or otherwise modify ceramic glass to make it fit.
Use the correct replacement gasket and manufacturer-specified mounting method.
Do not overtighten glass retainers or mounting hardware.
Follow Quadra-Fire's instructions for glass replacement and installation.
Custom Glass Option:
Need a different size or have a hard-to-find Quadra-Fire glass panel? Custom-cut ceramic and tempered glass is also available.
Custom-Cut Ceramic & Tempered Glass
Shipping Details:
Free Shipping: 3-5 business days
