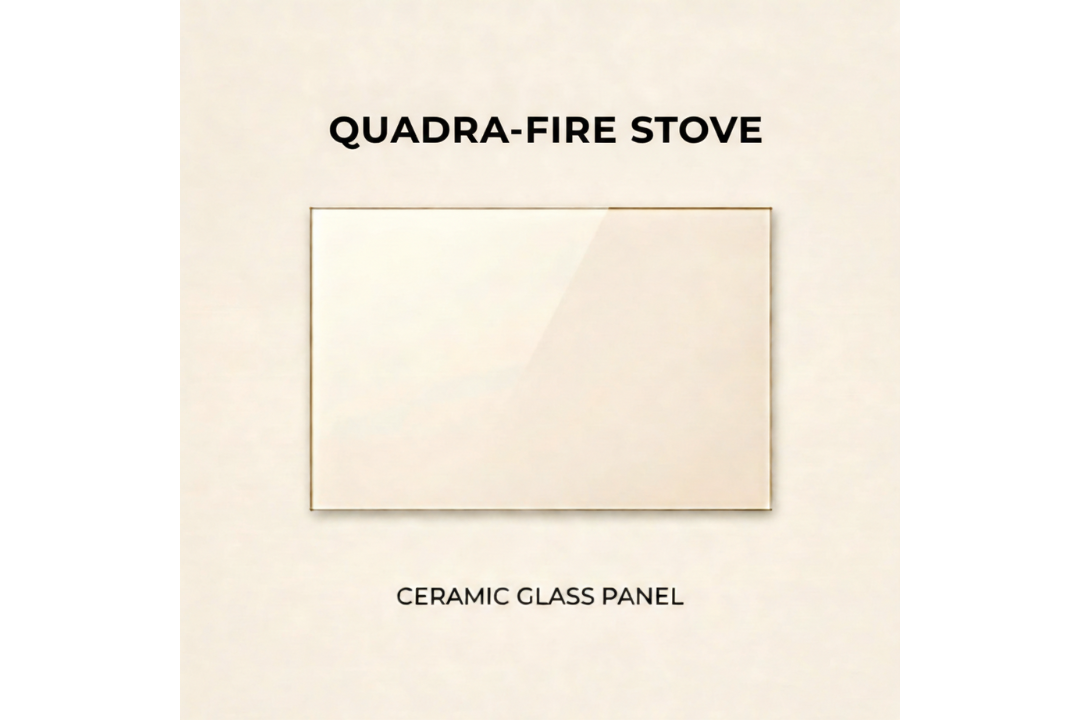

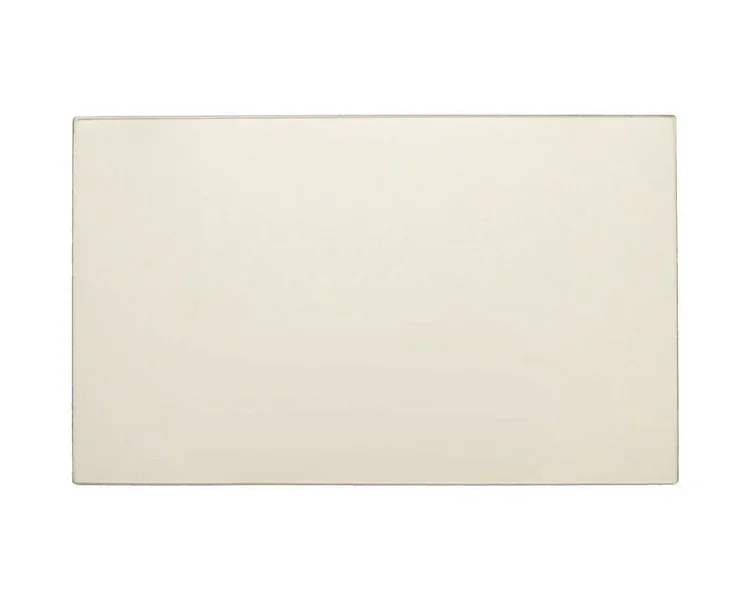

Quadra-Fire 1200 Ceramic Replacement Glass
If the glass on your Quadra-Fire 1200 is cracked, damaged, or too cloudy to enjoy the fire, this replacement ceramic panel can bring that clear flame view back.

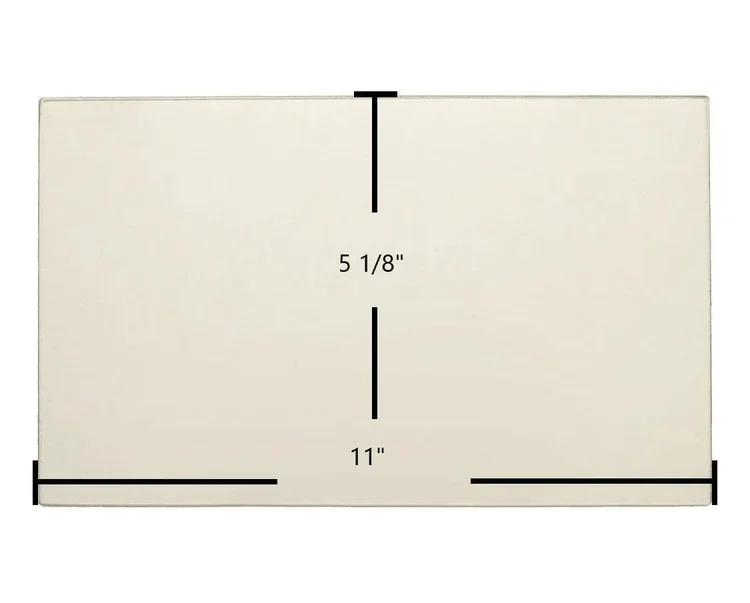

The panel measures 11" x 5 1/8" and is 3/16" (5mm) thick. It's made from high-temperature ceramic glass rated for temperatures up to 1400°F (760°C), with the transparent amber tint commonly found in ceramic stove glass.
The supplied information lists part 510-5410 for Quadra-Fire 1200, 1200-I, and Classic Bay Side pellet stoves. Tape gasket is sold separately.
Before ordering, I'd confirm the model, part number, and measurements against your existing panel. Quadra-Fire has enough similar model names and glass panels to make a tape measure one of my favorite troubleshooting tools.
Product Details / Specifications:
Part Number: 510-5410
Dimensions: 11" x 5 1/8"
Thickness: 3/16" (5mm)
Glass Type: High-temperature ceramic glass
Temperature Rating: Up to 1400°F (760°C)
Tint: Clear with transparent amber tint
Listed Fit: Quadra-Fire 1200, 1200-I, and Classic Bay Side pellet stoves
Made in USA
Tape Gasket: Sold separately
FAQs:
Q: What size is the Quadra-Fire 1200 replacement glass?
A: The supplied dimensions are 11" x 5 1/8" with a thickness of 3/16" (5mm).
Q: What part number is listed for this glass?
A: The supplied replacement part number is 510-5410.
Q: Does this glass also fit the Quadra-Fire 1200-I?
A: The supplied compatibility information lists the Quadra-Fire 1200, 1200-I, and Classic Bay Side. Confirm your exact model, part number, and measurements before ordering.
Q: Is the tape gasket included?
A: No. The supplied product information states that the tape gasket is sold separately.
Fit / Compatibility / Safety Notes:
Confirm your exact Quadra-Fire pellet stove model before ordering.
Verify part number 510-5410 against your stove documentation when possible.
Measure carefully and confirm your required panel is 11" x 5 1/8" x 3/16".
Do not order by model name alone if your stove uses multiple glass panels.
Use high-temperature ceramic stove glass where specified; do not substitute standard household glass.
Never force, grind, trim, or otherwise modify ceramic glass to make it fit.
Use the correct replacement gasket and manufacturer-specified mounting method.
Do not overtighten glass retainers or mounting hardware.
Follow Quadra-Fire's instructions for glass replacement and installation.
Custom Glass Option:
Need a different size or have a hard-to-find Quadra-Fire glass panel? Custom-cut ceramic and tempered glass is also available.
Custom-Cut Ceramic & Tempered Glass
Shipping Details:
Free Shipping: 3-5 business days
