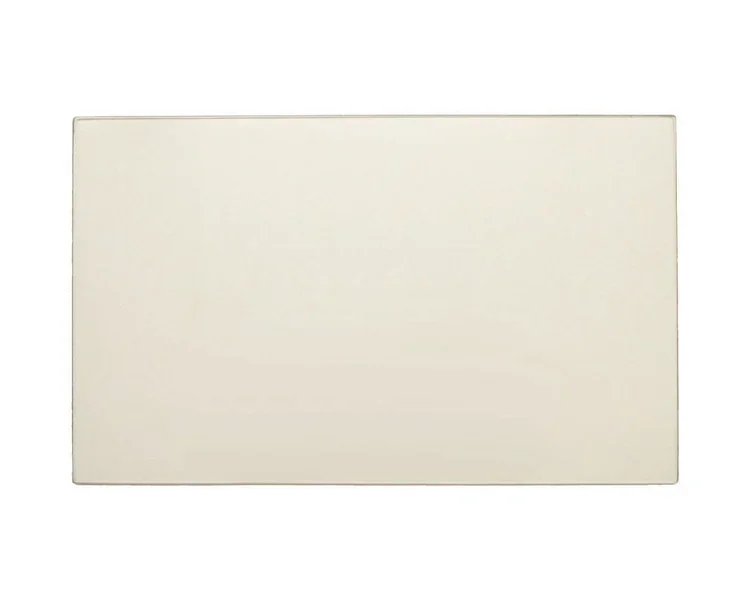

Napoleon WM1020 Ceramic Replacement Glass
If the glass on your Napoleon WM1020 is cracked, damaged, or too cloudy to enjoy the fire, this replacement ceramic panel can bring that clear flame view back.

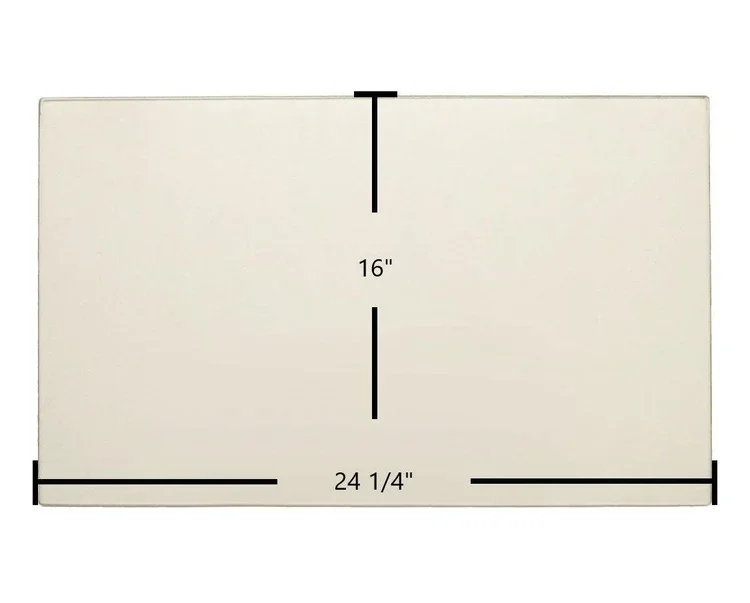

The panel measures 24 1/4" x 16" and is 3/16" (5mm) thick. It's made from high-temperature ceramic glass rated for temperatures up to 1400°F (760°C), with the transparent amber tint commonly found in ceramic stove glass.
The supplied information lists part W010-1072 for Napoleon WM1020, NM2020, NZ26, and NZ2000 models. Tape gasket is sold separately.
Before ordering, I'd confirm the model, part number, and measurements against your existing glass or appliance documentation. It's a big piece of glass, so this is definitely one of those measure-first, celebrate-the-fit-later situations.
Product Details / Specifications:
Part Number: W010-1072
Dimensions: 24 1/4" x 16"
Thickness: 3/16" (5mm)
Glass Type: High-temperature ceramic glass
Temperature Rating: Up to 1400°F (760°C)
Tint: Clear with transparent amber tint
Listed Fit: Napoleon WM1020, NM2020, NZ26, and NZ2000
Made in USA
Tape Gasket: Sold separately
FAQs:
Q: What size is the Napoleon WM1020 replacement glass?
A: The supplied dimensions are 24 1/4" x 16" with a thickness of 3/16" (5mm).
Q: What Napoleon part number is listed for this glass?
A: The supplied part number is W010-1072.
Q: Does this glass fit other Napoleon models?
A: The supplied compatibility information lists Napoleon WM1020, NM2020, NZ26, and NZ2000. Confirm your exact model, part number, and measurements before ordering.
Q: Is the tape gasket included?
A: No. The supplied product information states that the tape gasket is sold separately.
Fit / Compatibility / Safety Notes:
Confirm your exact Napoleon model before ordering.
Verify part number W010-1072 against your appliance documentation when possible.
Measure carefully and confirm your required panel is 24 1/4" x 16" x 3/16".
Do not order by model name alone if model-year or glass variations exist.
Use the glass type specified by Napoleon for your appliance; do not substitute standard household glass.
Never force, grind, trim, or otherwise modify ceramic glass to make it fit.
Use the correct replacement gasket and manufacturer-specified mounting method.
Do not overtighten glass retainers or mounting hardware.
Follow Napoleon's instructions for glass replacement and installation.
Custom Glass Option:
Need a different size or have a hard-to-find Napoleon glass panel? Custom-cut ceramic and tempered glass is also available.
Custom-Cut Ceramic & Tempered Glass
Shipping Details:
Free Shipping: 3-5 business days
Napoleon WM1020 Ceramic Replacement Glass
If the glass on your Napoleon WM1020 is cracked, damaged, or too cloudy to enjoy the fire, this replacement ceramic panel can bring that clear flame view back.
The panel measures 24 1/4" x 16" and is 3/16" (5mm) thick. It's made from high-temperature ceramic glass rated for temperatures up to 1400°F (760°C), with the transparent amber tint commonly found in ceramic stove glass.
The supplied information lists part W010-1072 for Napoleon WM1020, NM2020, NZ26, and NZ2000 models. Tape gasket is sold separately.
Before ordering, I'd confirm the model, part number, and measurements against your existing glass or appliance documentation. It's a big piece of glass, so this is definitely one of those measure-first, celebrate-the-fit-later situations.
Product Details / Specifications:
Part Number: W010-1072
Dimensions: 24 1/4" x 16"
Thickness: 3/16" (5mm)
Glass Type: High-temperature ceramic glass
Temperature Rating: Up to 1400°F (760°C)
Tint: Clear with transparent amber tint
Listed Fit: Napoleon WM1020, NM2020, NZ26, and NZ2000
Made in USA
Tape Gasket: Sold separately
FAQs:
Q: What size is the Napoleon WM1020 replacement glass?
A: The supplied dimensions are 24 1/4" x 16" with a thickness of 3/16" (5mm).
Q: What Napoleon part number is listed for this glass?
A: The supplied part number is W010-1072.
Q: Does this glass fit other Napoleon models?
A: The supplied compatibility information lists Napoleon WM1020, NM2020, NZ26, and NZ2000. Confirm your exact model, part number, and measurements before ordering.
Q: Is the tape gasket included?
A: No. The supplied product information states that the tape gasket is sold separately.
Fit / Compatibility / Safety Notes:
Confirm your exact Napoleon model before ordering.
Verify part number W010-1072 against your appliance documentation when possible.
Measure carefully and confirm your required panel is 24 1/4" x 16" x 3/16".
Do not order by model name alone if model-year or glass variations exist.
Use the glass type specified by Napoleon for your appliance; do not substitute standard household glass.
Never force, grind, trim, or otherwise modify ceramic glass to make it fit.
Use the correct replacement gasket and manufacturer-specified mounting method.
Do not overtighten glass retainers or mounting hardware.
Follow Napoleon's instructions for glass replacement and installation.
Custom Glass Option:
Need a different size or have a hard-to-find Napoleon glass panel? Custom-cut ceramic and tempered glass is also available.
Custom-Cut Ceramic & Tempered Glass
Shipping Details:
Free Shipping: 3-5 business days
