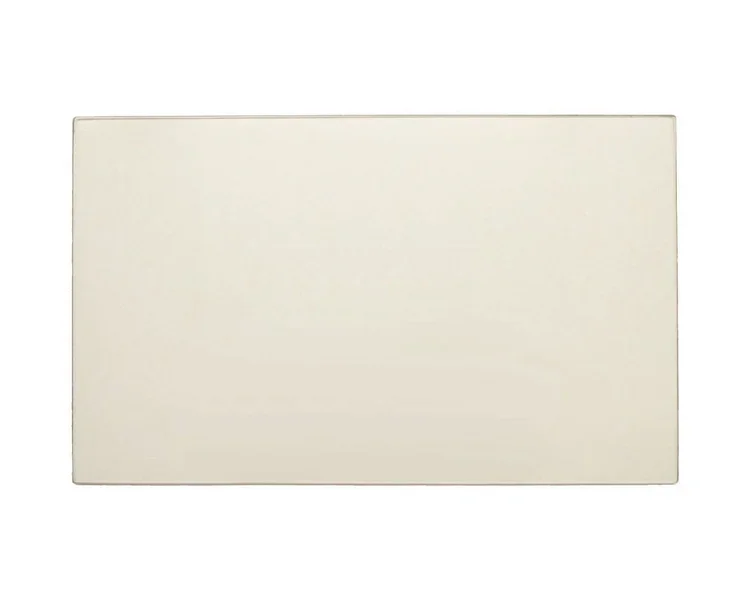

Napoleon S20 Ceramic Replacement Glass
If the glass on your Napoleon S20 is cracked, damaged, or too cloudy to enjoy the fire, this replacement ceramic panel can bring that clear flame view back.
The panel measures 16 9/16" x 10 13/16" and is 3/16" (5mm) thick. It's made from high-temperature ceramic glass rated for temperatures up to 1400°F (760°C), with the transparent amber tint commonly found in ceramic stove glass.
The supplied information lists part W300-0168 for Napoleon S20, S1, S4, and S9 models. The gasket is sold separately.
Before ordering, I'd compare the model, part number, and measurements with your existing glass or stove documentation. Measuring twice isn't glamorous, but neither is receiving a beautiful piece of glass that doesn't fit.
Product Details / Specifications:
Part Number: W300-0168
Dimensions: 16 9/16" x 10 13/16"
Thickness: 3/16" (5mm)
Glass Type: High-temperature ceramic glass
Temperature Rating: Up to 1400°F (760°C)
Tint: Clear with transparent amber tint
Listed Fit: Napoleon S20, S1, S4, and S9
Made in USA
Gasket: Sold separately
FAQs:
Q: What size is the Napoleon S20 replacement glass?
A: The supplied dimensions are 16 9/16" x 10 13/16" with a thickness of 3/16" (5mm).
Q: What Napoleon part number is listed for this glass?
A: The supplied part number is W300-0168.
Q: Does this glass fit other Napoleon stove models?
A: The supplied compatibility information lists Napoleon S20, S1, S4, and S9. Confirm your exact model, part number, and measurements before ordering.
Q: Is the gasket included?
A: No. The supplied product information states that the gasket is sold separately.
Fit / Compatibility / Safety Notes:
Confirm your exact Napoleon stove model before ordering.
Verify part number W300-0168 against your stove documentation when possible.
Measure carefully and confirm your required panel is 16 9/16" x 10 13/16" x 3/16".
Do not order by model name alone if model-year or glass variations exist.
Use the glass type specified by Napoleon for your stove; do not substitute standard household glass.
Never force, grind, trim, or otherwise modify ceramic glass to make it fit.
Use the correct replacement gasket and manufacturer-specified mounting method.
Do not overtighten glass retainers or mounting hardware.
Follow Napoleon's instructions for glass replacement and installation.
Custom Glass Option:
Need a different size or have a hard-to-find Napoleon glass panel? Custom-cut ceramic and tempered glass is also available.
Custom-Cut Ceramic & Tempered Glass
Shipping Details:
Free Shipping: 3-5 business days
