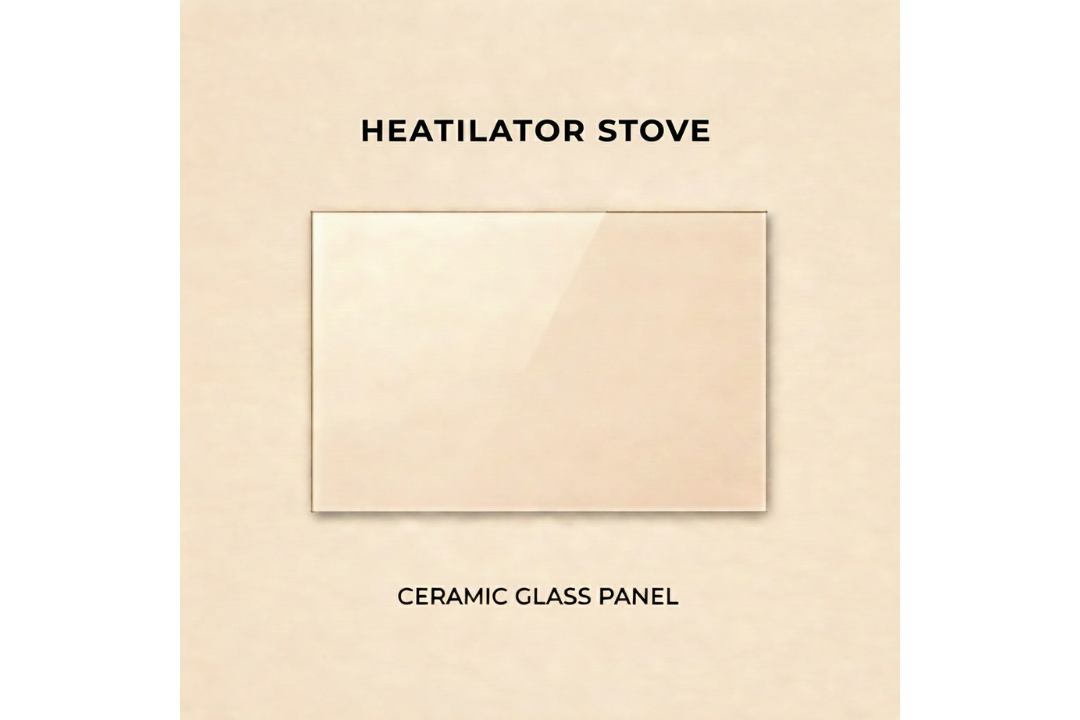

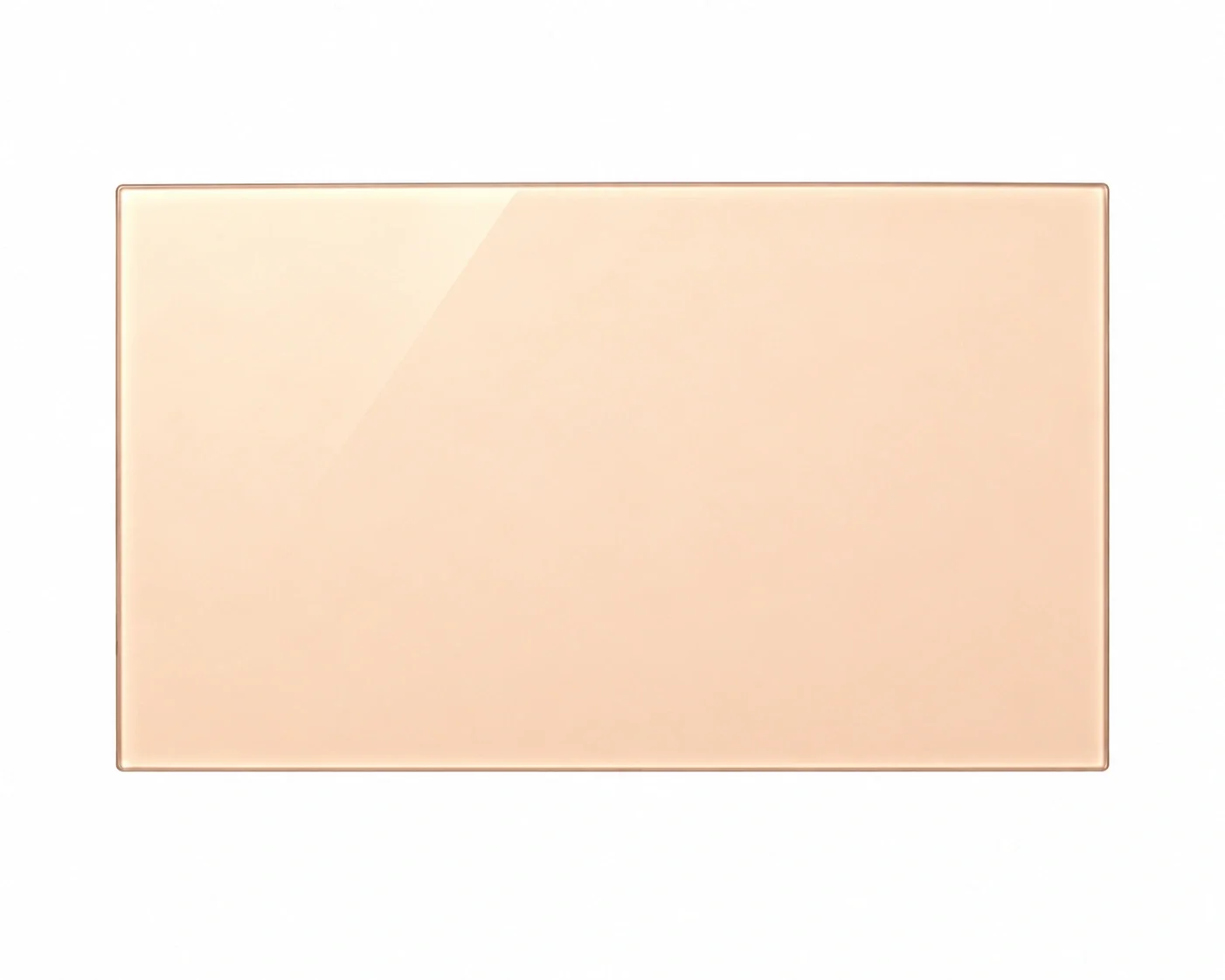

Heatilator Eco-Choice PS50 Ceramic Replacement Glass
If the glass on your Heatilator Eco-Choice PS50 is cracked, damaged, or too cloudy to enjoy the fire, this replacement ceramic panel can bring that clear view back.
The rectangular panel measures 13 3/4" x 10 3/4" and is 3/16" (5mm) thick. It's made from high-temperature ceramic glass rated for temperatures up to 1400°F (760°C), with the natural amber tint commonly found in ceramic stove glass.
The supplied information lists part 7058-015 for Heatilator Eco-Choice PS50, PS35, and CAB50 models. The replacement gasket is sold separately.
Before ordering, I'd check your exact model, part number, and measurements against the existing glass or appliance documentation. Three models may share this panel, but I still trust a tape measure more than a hopeful guess.
Product Details / Specifications:
Part Number: 7058-015

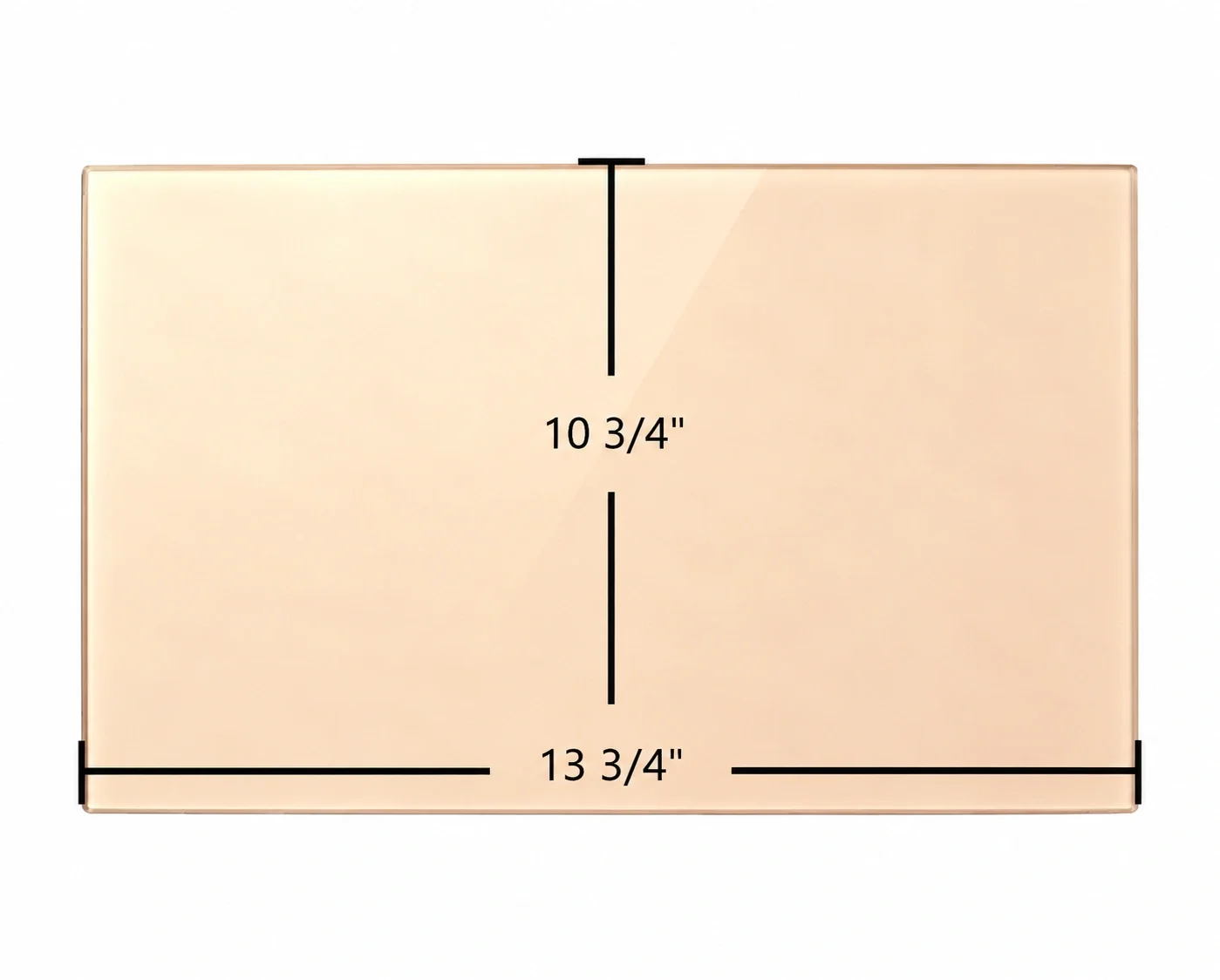

Dimensions: 13 3/4" W x 10 3/4" H
Thickness: 3/16" (5mm)
Glass Type: High-temperature ceramic glass
Temperature Rating: Up to 1400°F (760°C)
Shape: Rectangle
Tint: Clear with natural amber tint
Listed Fit: Heatilator Eco-Choice PS50, PS35, and CAB50
Made in USA
Gasket: Sold separately
FAQs:
Q: What size is the Heatilator Eco-Choice PS50 replacement glass?
A: The supplied dimensions are 13 3/4" wide x 10 3/4" high with a thickness of 3/16" (5mm).
Q: What part number is listed for the PS50 glass?
A: The supplied replacement part number is 7058-015.
Q: Does this glass also fit the Heatilator PS35 and CAB50?
A: The supplied compatibility information lists the Eco-Choice PS50, PS35, and CAB50. Confirm your exact model, part number, and measurements before ordering.
Q: Is the replacement gasket included?
A: No. The supplied product information states that the gasket is sold separately.
Fit / Compatibility / Safety Notes:
Confirm your exact Heatilator Eco-Choice model before ordering.
Verify part number 7058-015 against your appliance documentation when possible.
Measure carefully and confirm your required panel is 13 3/4" x 10 3/4" x 3/16".
Do not order by model name alone if model-year or serial-number variations exist.
Use the glass type specified by Heatilator for your appliance; do not substitute standard household glass.
Never force, grind, trim, or otherwise modify ceramic glass to make it fit.
Use the correct replacement gasket and manufacturer-specified mounting method.
Do not overtighten glass retainers or mounting hardware.
Follow Heatilator's instructions for glass replacement and installation.
Custom Glass Option:
Need a different size or have a hard-to-find Heatilator glass panel? Custom-cut ceramic and tempered glass is also available.
Custom-Cut Ceramic & Tempered Glass
Shipping Details:
Free Shipping: 3-5 business days
